Our Shanghai Yingfan company is specialized in producing HDPE geomembrane liner and other geosynthetic lining products. Our HDPE geomembrane liner is manufactured strictly in conformity with ISO9001 and ISO14001 quality management systems. Meanwhile, we keep our staff healthy and safe in the entire working area based on OHSAS18001 occupational health and safety assessment series.

Product Overview

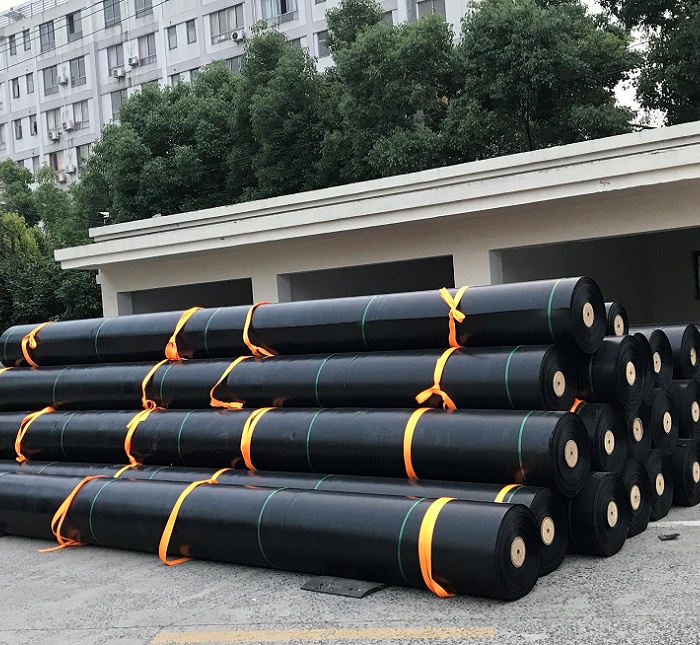

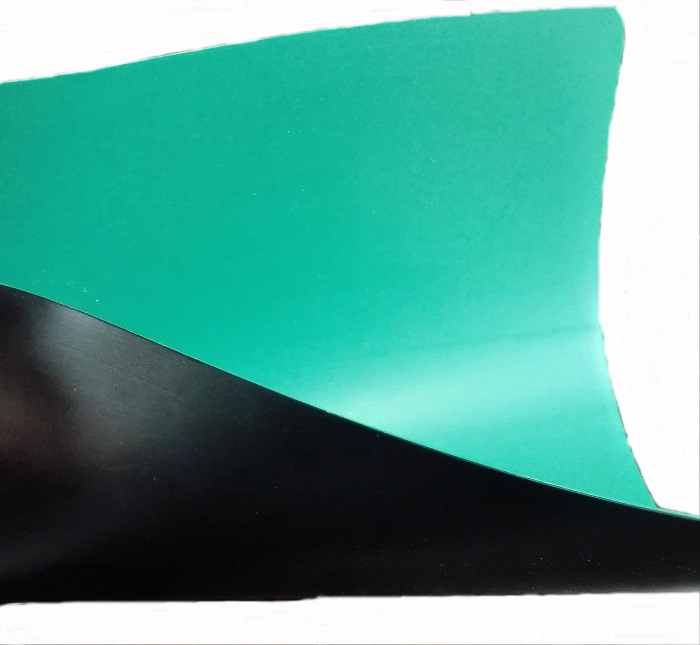

Our supplied HDPE geomembrane liner is an impervious homogenous sheet rolls manufactured by 97.5% HDPE resin and few amounts of “CARBOT” carbon black with antioxidants, anti‑aging agent, UV absorber, and other adjuvant. The processing way is advanced blown film geomembranes processing way.

For this processing way, due to the weight of the vertical column of film, the blown film process tends to introduce a degree of balanced orientation to the liner. Molecular orientation can improve the mechanical properties of the liner. So, the blow film method can generate a higher performance geomembrane than flat‑die manufactured liner.

(simplified blown film geomembranes processing way)    blown film geomembrane liners processing

Features

HDPE geomembrane liner is featured with quite low permeability (1×10‑17 cm/s), excellent chemical resistance, optimum strength and elongation behavior, and long service life for their applications, especially those ones without sunshine exposure.

Applications

Environmental and Sanitary Application: domestic waste landfill, wastewater treatment plant, toxic or harmful substance treatment plant, hazardous substance warehouse, plants, etc.

Hydraulic and Civil Engineering application: seepage control of rivers/lakes/reservoirs/embankments/channels/dams, vertical walls, slopes protection, lining for emergency spillways, etc.

Municipal Works Application: subway, buildings beneath engineering projects, waterproofing engineering of roof reservoirs and gardens, sewage pipe lining, etc.

Gardening and Greening: lining of artificial lakes/ponds/golf course ponds and their slopes protection, etc.

Oil and Chemical Application: pollution containment for chemical plants/oil refinery tanks, lining or second lining for chemical reactions ponds/ sedimentation tanks/salt ponds, etc.

Mining Application: lining or containment for processing ponds/heap leaching ponds/ash containment yards/tailing waste dams, etc.

Transportation Application: seepage control of railways/roads/highways/airports/sport fields/tunnels/caves, etc.

Agriculture and Aquaculture: seepage control of reservoirs/drinking water ponds/water collection ponds/irrigation system, lining of shrimp/fish ponds, lining and covering of animal waste ponds and biogas ponds, etc.

Specification: HDPE Geomembrane Liner Smooth

Thickness(ASTM D5199, test per roll): 0.25mm, 0.3mm, 0.35mm, 0.5mm, 0.75mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm
Density(ASTM D1505/D792, test per 90000 kgs): 0.94 g/cm³
Melt Index 190/2.16 g/10min(ASTM D1238, test per 90000 kgs): 1.0

Tensile properties(ASTM D6693 Type IV, test per 9000 kgs)
Yield strength(N/mm): 3.75, 5.5, 8, 11, 15, 18, 22, 29
Break strength(N/mm): 6.7, 8, 9.5, 14, 20, 27, 33, 40, 53
Yield elongation %: 12
Break elongation %: 600, 600, 700, 700, 700, 700, 700, 700, 700

Tear resistance N(ASTM D1004, test per 20000 kgs): 31, 40, 44, 65, 93, 125, 156, 187, 249
Puncture resistance N(ASTM D4833, test per 20000 kgs): 80, 105, 112, 176, 240, 320, 400, 480, 640
Stress crack resistance h(ASTM D5397, test per 90000 kgs): 500
Carbon black content %(ASTM D4218, test per 90000 kgs): 2.0‑3.0
Carbon black dispersion(ASTM D5596, test per 20000 kgs): Carbon black dispersion(only near spherical agglomerates) for 10 different views 9 in categories 1 or 2 and 1 in category 3
Standard OIT /min(ASTM D3895, test per 90000 kgs): ≥100
High pressure OIT /min(ASTM D5885, test per 90000 kgs): ≥400

85℃ Oven aging (ASTM D5721, per each formulation):
Standard OIT‑% retained after 90days: 55
High pressure OIT‑% retained after 90days: 80

UV Resistance(ASTM D7238, per each formulation):
Standard OIT retained after 1600hrs: 50
High pressure OIT retained after 1600hrs: 50
‑70°C Low temperature impact brittle property(ASTM D746, per each formulation): Pass
Permeability(ASTM E96/E96M, test per 50000 kgs): ≤1.0×10‑13 g•cm/(cm²•pa)
Dimensional stability %(ASTM D1204, test per 90000 kgs): ±2
Roll Width m: 6, 6, 6, 7, 7, 7, 7, 7, 7
Roll Length m: 80, 70, 70, 420, 280, 210, 160, 140, 105

* The information contained herein is provided for reference purposes only and is not intended as a warranty of guarantee. Final determination of suitability for use contemplated is the sole responsibility of the user. YINGFAN assumes no liability in connection with the use of this information. R200221V

Specification: HDPE Geomembrane Liner Textured

Thickness(ASTM D5199, test per roll): 0.75mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm
Density(ASTM D1505/D792, test per 90000 kgs): 0.94 g/cm³
Melt Index 190/2.16 g/10min(ASTM D1238, test per 90000 kgs): 1.0
Asperity height mm(ASTM D7466, test every 2nd roll): 0.4

Tensile properties(ASTM D6693 Type IV, test per 9000 kgs)
Yield strength(N/mm): 11, 15, 18, 22, 29
Break strength(N/mm): 8, 10, 13, 16, 21
Yield elongation %: 12
Break elongation %: 100

Tear resistance N(ASTM D1004, test per 20000 kgs): 93, 125, 156, 187, 249
Puncture resistance N(ASTM D4833, test per 20000 kgs): 200, 267, 333, 400, 534
Stress crack resistance h(ASTM D5397, test per 90000 kgs): 500
Carbon black content %(ASTM D4218, test per 9000 kgs): 2.0‑3.0
Carbon black dispersion(ASTM D5596, test per 20000 kgs): Carbon black dispersion(only near spherical agglomerates) for 10 different views 9 in categories 1 or 2 and 1 in category 3
Standard OIT /min(ASTM D3895, test per 90000 kgs): ≥100
High pressure OIT /min(ASTM D5885, test per 90000 kgs): ≥400

85℃ Oven aging (ASTM D5721, per each formulation):
Standard OIT‑% retained after 90days: 55
High pressure OIT‑% retained after 90days: 80

UV Resistance(ASTM D7238, per each formulation):
Standard OIT retained after 1600hrs: 50
High pressure OIT retained after 1600hrs: 50
‑70°C Low temperature impact brittle property(ASTM D746, per each formulation): Pass
Permeability(ASTM E96/E96M, test per 50000 kgs): ≤1.0×10‑13 g•cm/(cm²•pa)
Dimensional stability %(ASTM D1204, test per 90000 kgs): ±2
Roll Width m:7
Roll Length m: 280, 210, 160, 140, 105

* The information contained herein is provided for reference purposes only and is not intended as a warranty of guarantee. Final determination of suitability for use contemplated is the sole responsibility of the user. YINGFAN assumes no liability in connection with the use of this information. R200221V
