HDPE Geomembrane Textured

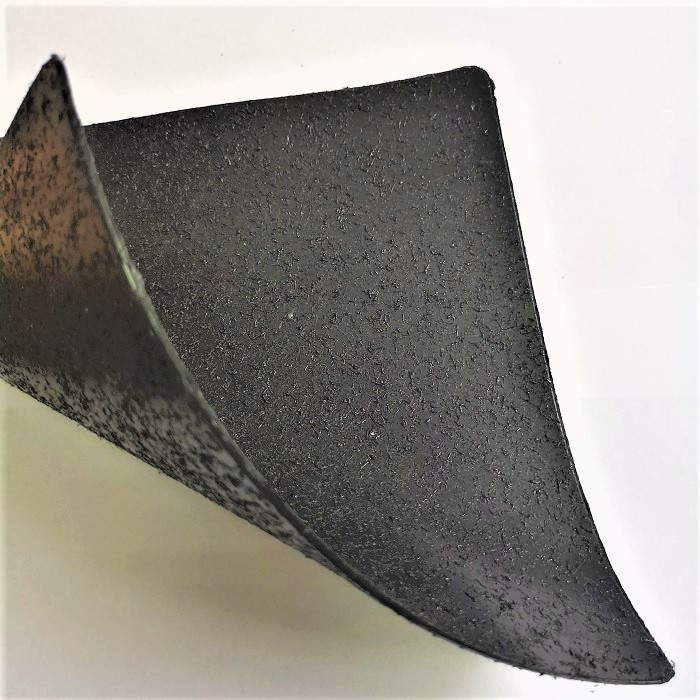

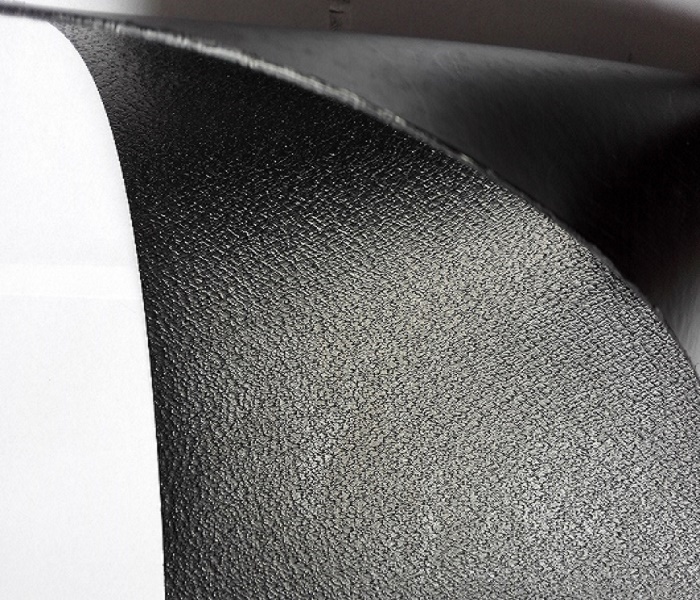

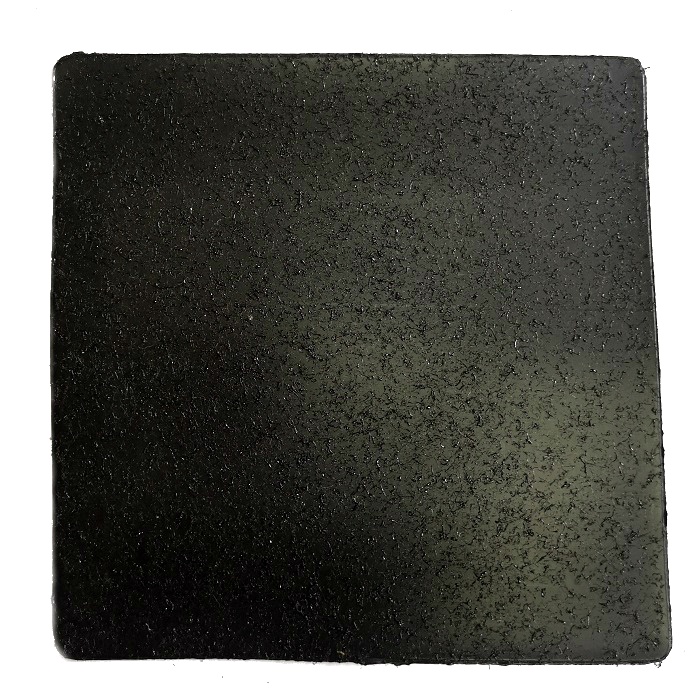

Produced from high-density polyethylene (HDPE) with a textured surface on one or both sides, created via nitrogen gas injection during the blown-film extrusion process. The engineered surface texture enhances frictional contact with adjacent soil layers.

Specifications: Thickness 1.0mm-3.0mm · Width up to 7m · Compliant with GRI GM13 standard · Friction angle >= 26 deg

Applications: Steep-slope landfill liners, surface impoundments, canal linings, and tailings dams where slope stability is critical.

Key Advantage: The textured surface significantly increases friction coefficient, preventing liner slippage on inclined surfaces and enabling steeper slope designs.

Whatsapp : +86 191 1722 9923

Email : huruze@shyfem.com

Product Description

HDPE Geomembrane Textured Introduction

Yingfan HDPE textured geomembranes are available with either single- or double-sided textured surface which exhibit superior shear strength and the high multi-axial performance. The textured surface processing is the only one that produces a textured material without significant reduction of any physical properties. The product allows project for greater slopes to be designed since frictional characteristics are enhanced. Compared with smooth HDPE geomembranes, they have better friction features.

The manufacturing of HDPE geomembrane textured contains approximately 97.5% polyethylene, 2.5% carbon black and trace amounts of anti-oxidants and heat stabilizers, no other additives, fillers or extenders are used. The textured surface is processed by spraying system.

Feature and Advantage of HDPE Geomembrane Textured

1. Tear Resistant

2. Puncture Resistance

3. Very low permeability

4. Good friction performance

5. Alkali and acid resistance

HDPE Geomembrane Textured Specification

No.	Property		Value
			1.00mm	1.25 mm	1.50 mm	2.00 mm
1	Asperity Height	mm	0.25
2	Density	g/cm3	0.939
3	Strength at Yield	N/MM	15	18	22	29
	Strength at Break	N/MM	10	13	16	21
	Elongation at Yield	%	12
	Elongation at Break	%	100
4	Tear Resistance	N	125	156	187	249
5	Puncture Resistance	N	267	333	400	534
6	Stress Crack Resistance	Hour	300
7	Carbon Black
	Carbon Black Content(range)	%	2.0～3.0
	Carbon Black Dispersion		Carbon black dispersion for 10 different views: at least 9 in Categories 1 or 2,less than 1 in Categories 3
8	Oxidative Induction Time（OIT）
	Standard OIT	min	100
	High pressure OIT	min	400
9	Oven Aging at 85℃(min ava.)
	Standard OIT% retained after 90 days,or	%	55
	High pressure OIT% retained after 90 days	%	80
10	UV Resistance
	Standard OIT% retained after 1600 hrs,or	%	50
	High pressure OIT% retained after 1600 hrs	%	50
11	-70℃ Low temperature brittleness properties		Pass
12	Water vapor permeability	g.cm(cm2.s.Pa)	≤1.0*10-13
13	Dimensional Stability	%	±2

Forms Ordinary sheet size/roll:

Thickness mm	Width meters	Length meters
1.0	5.8/6	50
	7	50/210
1.5	5.8/6	50/100
	7	50/140
2.0	5.8/6	50
	7	50/105
	8	50/100

HDPE Geomembrane Textured Application

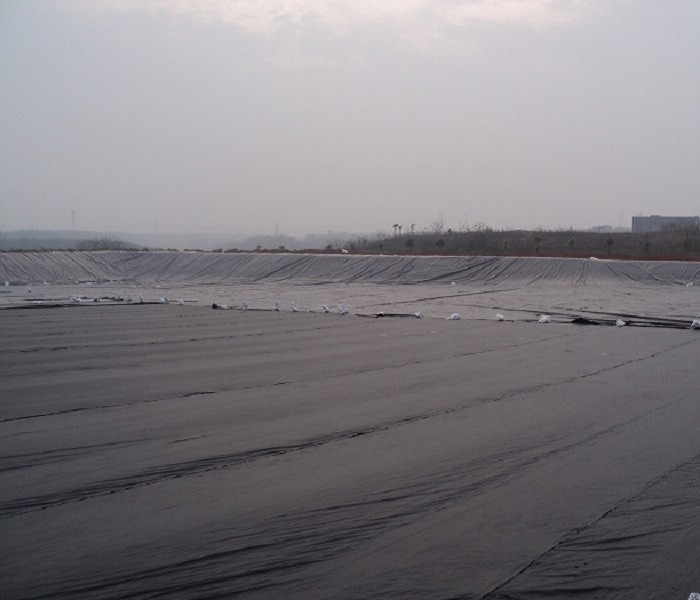

HDPE Geomembrane textured is used in applications that require increased frictional resistance, excellent chemical resistance and endurance properties such as solid waste landfills, hazardous waste landfills and C & D Landfills, mining, coal ash pond, animal waste containment, dam and embankment erosion control, artificial lake lining and so forth.

Service

1, Free sample available

2, Trial order acceptable

3, Customized packing acceptable

4, Excellent after-sales service system

FAQ

Q: How about sample, OEM, customization service

A: They are all available

Q: International installation service is available?

A: Yes, of course. We can signed different agreements based on your request.

Q: Installation Equipment is provided?

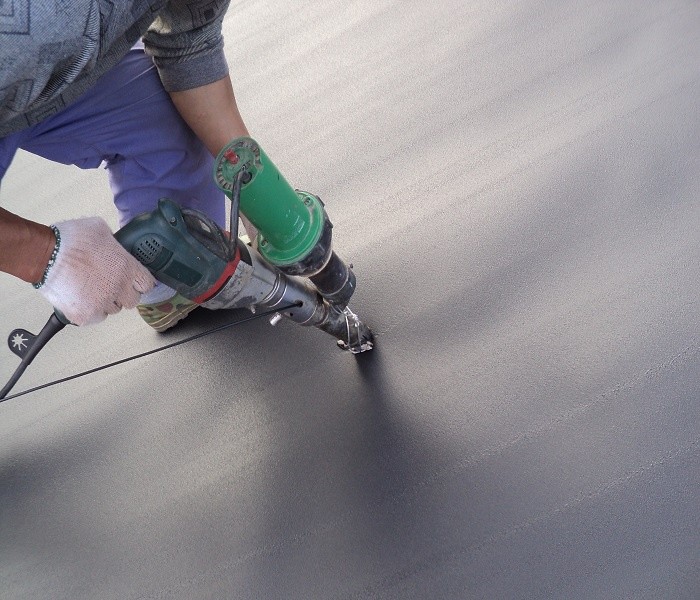

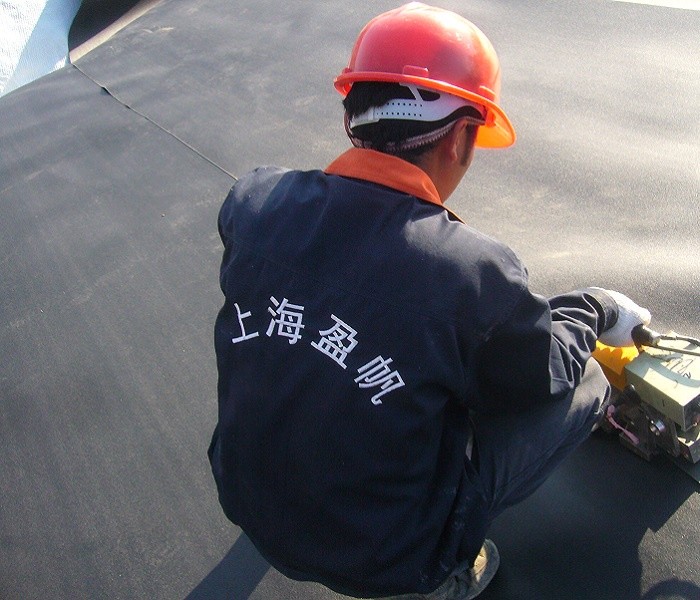

A: Yes. We can provide all of the geomembrane welding and testing machines.

Shanghai Yingfan Engineering Material Co., Ltd., headquarter in Shanghai and having branches in Chendu city and Xian city, is one of the leading and comprehensive geosynthetics manufacture and installation service provider in China. Our HDPE geomembrane production capability is top ranking in recent years around our country. Our company have CE certificate for HDPE geomembrane series products as well as ISO9001, ISO14001, OHSAS18001 company certificates.

We have improved our textured geomembrane equipment last year by bringing new spraying processing system.
