Our Shanghai Yingfan Engineering Material Co., Ltd. is one plastic welding hand extrusion welder supplier in Shanghai city of China. This machine can be used to weld our geomembranes in hot‑melting way.

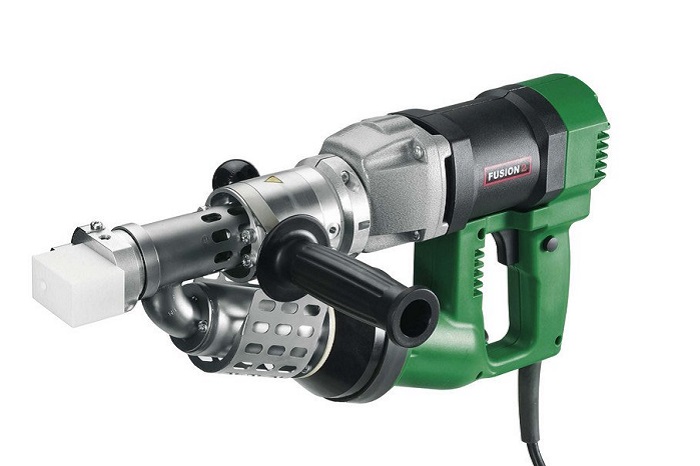

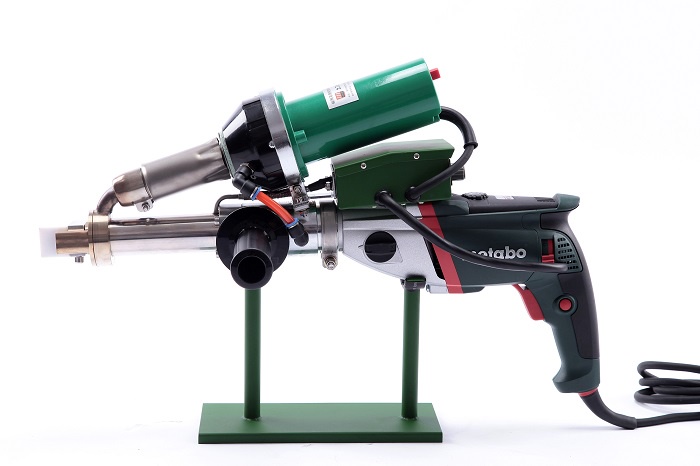

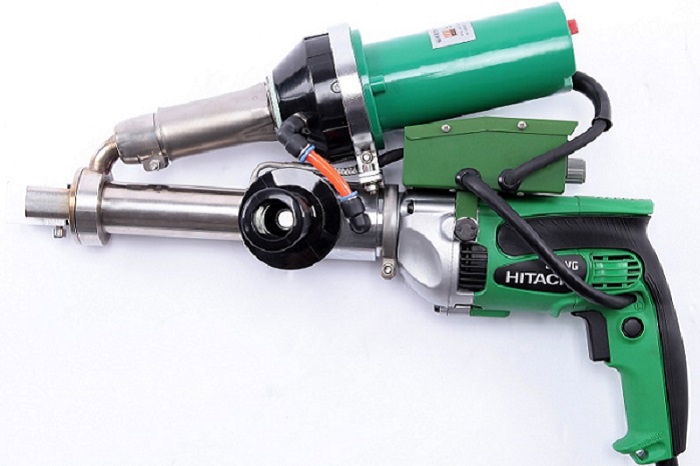

Plastic Welding Hand Extrusion Welder Introduction

The hand extrusion welder melts raw thermoplastic material and extrudes molten plastic to form continuous welding profiles. Plastic is melted by screw mechanical friction plus barrel heating elements. Molten polymer flows through die outlet and solidifies upon cooling. It fits PP, PE, PVDF, EVA and other thermoplastics, delivers excellent welding performance especially for PP and PE materials.

Features and Benefits

1. Core components including hot‑air gun and drive motor adopt well‑known imported branded parts for stable performance and long service life.

2. User‑friendly operation, continuous welding and high efficiency. Equipped with dual independent heating systems, digital display controller, 360‑degree rotatable welding head and motor cold‑start protection function.

Specification

‑ Voltage: 220V / 230V; Frequency: 50 / 60Hz

‑ Extruder drive motor power: 800W‑1100W

‑ Hot‑air gun power: 1600W

‑ Welding‑rod heating power: 800W

‑ Air temperature: 20‑600 ℃ adjustable

‑ Extrusion temperature: 200‑300 ℃ adjustable

‑ Welding output speed: 2 kg/h‑2.5 kg/h

‑ Applicable welding‑rod diameter: Φ3.0 mm‑4.0 mm

‑ Net weight / Gross weight: 6.5 kgs / 13.5 kgs

Application

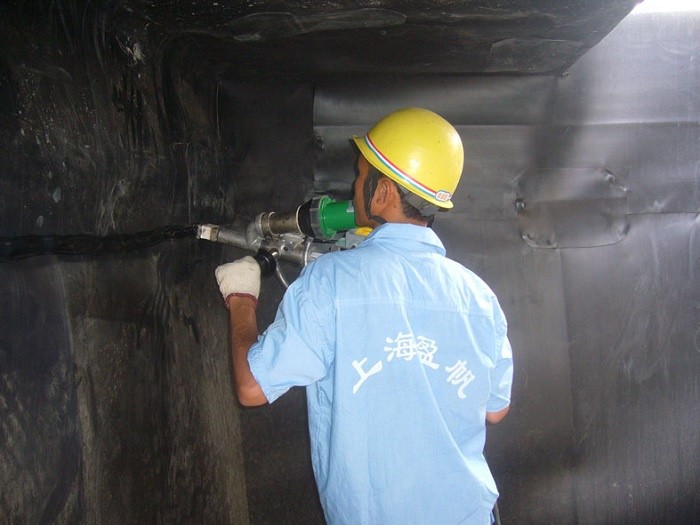

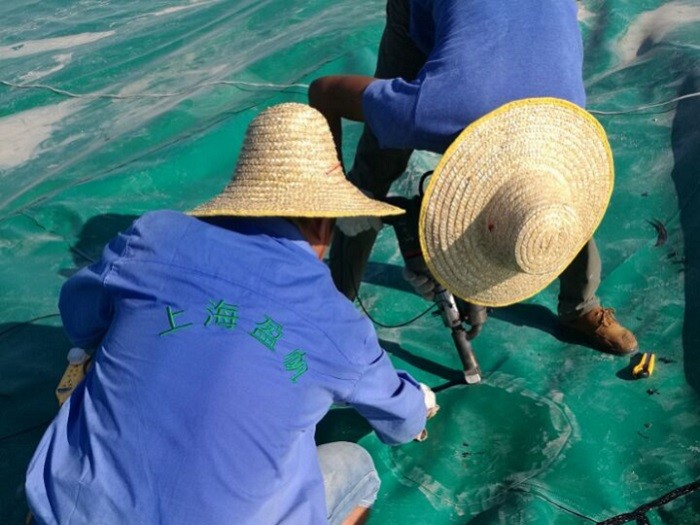

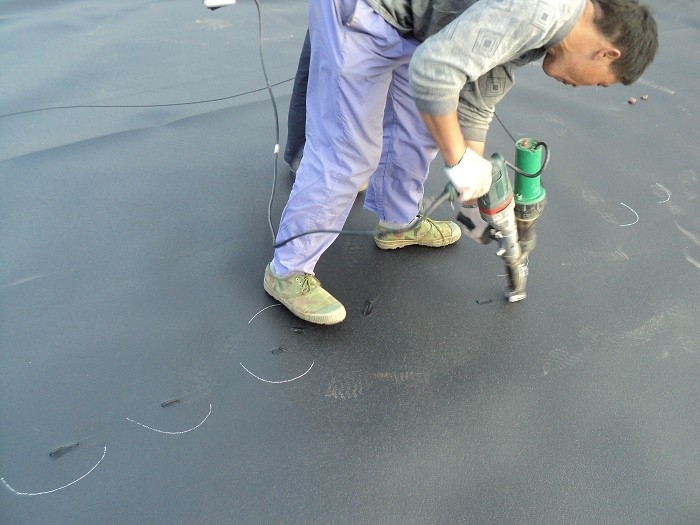

Widely used in civil engineering, tunnel construction, landfill and other geosynthetic anti‑seepage projects.

FAQ

Q: Is operation manual available?

A: Yes, manual is supplied.

Q: What is your MOQ?

A: MOQ is 1 set.

Q: Can you provide operation demonstration video?

A: Yes, we can provide usage video.

Our hand extrusion welders are designed for plastic sheet sealing for earthwork, hydraulic, tunnel and similar projects. Reliable equipment guarantees high‑quality geosynthetic installation with support from our professional on‑site technicians.
