High density polyethylene geomembrane is our top product in our company and this industry. We provide this product to many well‑known companies such as Sinopec, Petro China, Mengniu corp., Yili Corp., Muyuan Group, etc.

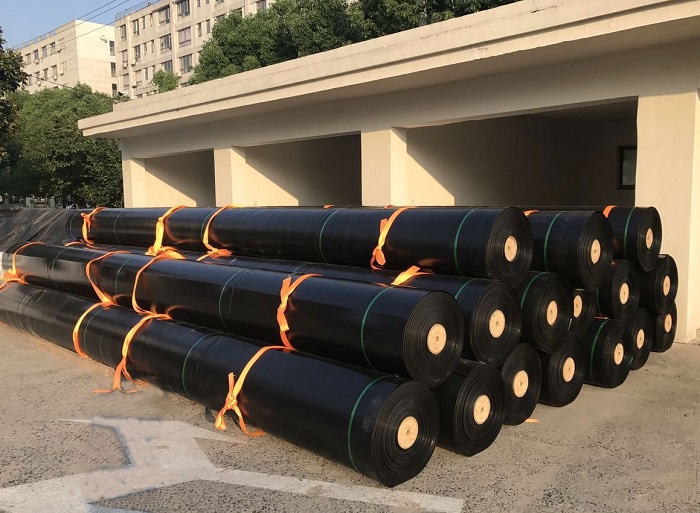

High Density Polyethylene（HDPE） Geomembrane Introduction

HDPE geomembrane is produced with premium‑grade resin specially developed for flexible geomembrane applications. Premium carbon black supplied by world‑class supplier Carbot is added for excellent UV‑radiation resistance.

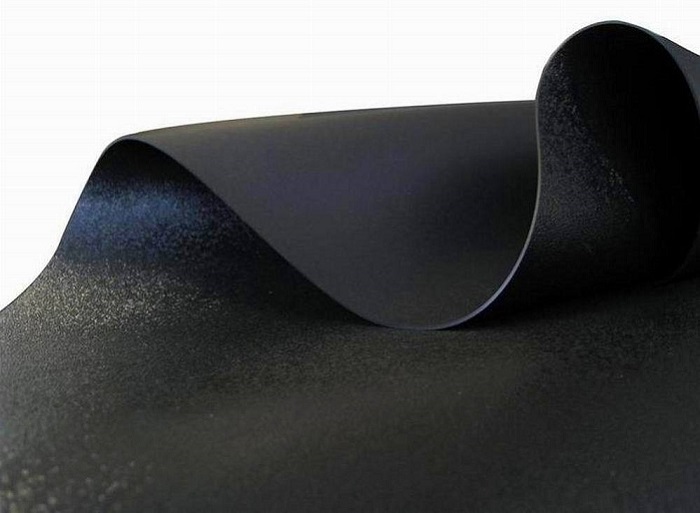

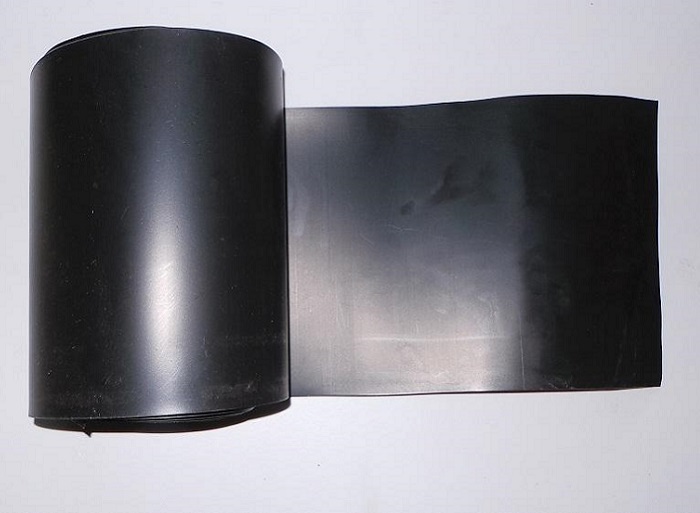

HDPE geomembrane covers smooth double‑sided, single‑sided textured and double‑sided textured types. Textured versions deliver superior shear strength and multi‑axial performance.

Manufactured from virgin HDPE resin blended with carbon black, antioxidant and stabilizers. It achieves outstanding mechanical indexes, long‑term resistance to aggressive chemicals, environmental stress cracking and UV exposure.

Yingfan textured HDPE geomembrane keeps all above advantages plus excellent friction performance, ideal for slope lining projects.

Feature and Advantage

1. Excellent physical‑mechanical performance

2. High tear‑resistance and good deformation adaptability

3. Puncture‑resistant, anti‑aging, UV‑resistant, oil‑salt resistant and anti‑corrosion

4. Wide temperature adaptability, non‑toxic, long service life

5. Complete range of width & thickness specifications

6. Cost‑effective price, simple and fast installation

HDPE Geomembrane Specification

Compliant with GRI‑GM13, ISO, GB/T 17643‑2006 and CJ/T234‑2006 standards.

Smooth HDPE Geomembrane Key Parameters:

‑ Density: 0.94 g/cm³

‑ Yield strength: 5‑29 N/mm; Break strength: 8‑53 N/mm

‑ Yield elongation: 12%; Break elongation ≥700%

‑ Tear resistance: 40‑249 N

‑ Puncture resistance: 105‑640 N

‑ Stress‑crack resistance: ≥300 h

‑ Carbon‑black content: 2.0‑3.0%

‑ Standard OIT ≥100 min; High‑pressure OIT ≥400 min

‑ 85℃ oven aging & UV‑aging retention requirements follow GRI‑GM13

‑ ‑70℃ low‑temperature impact brittle test: Pass

‑ Permeability ≤1.0×10⁻¹³ g·cm/(cm²·Pa)

‑ Dimensional stability: ±2%

Textured HDPE Geomembrane Key Parameters:

‑ Surface roughness: 0.25 mm

‑ Density: 0.939 g/cm³

‑ Yield strength:15‑29 N/mm; Break strength:10‑21 N/mm

‑ Yield elongation:12%; Break elongation ≥100%

‑ Tear resistance:125‑249 N; Puncture resistance:267‑534 N

‑ Stress‑crack resistance: ≥300 h

‑ Carbon‑black content:2.0‑3.0%

‑ Standard OIT ≥100 min; High‑pressure OIT ≥400 min

‑ Oven‑aging & UV‑aging retention indexes same as smooth type

HDPE Geomembrane Application

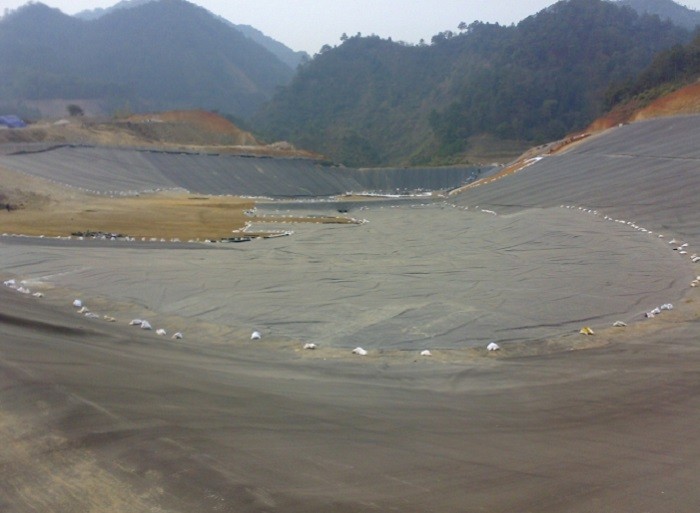

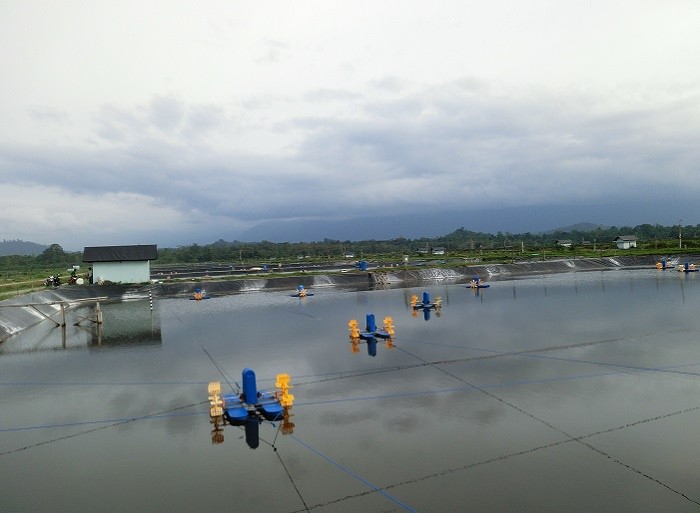

Environmental: waste‑liquid liners, secondary containment for underground tanks, brine storage, aquaculture fish/shrimp ponds, municipal solid‑waste landfills, heap‑leach pads etc.

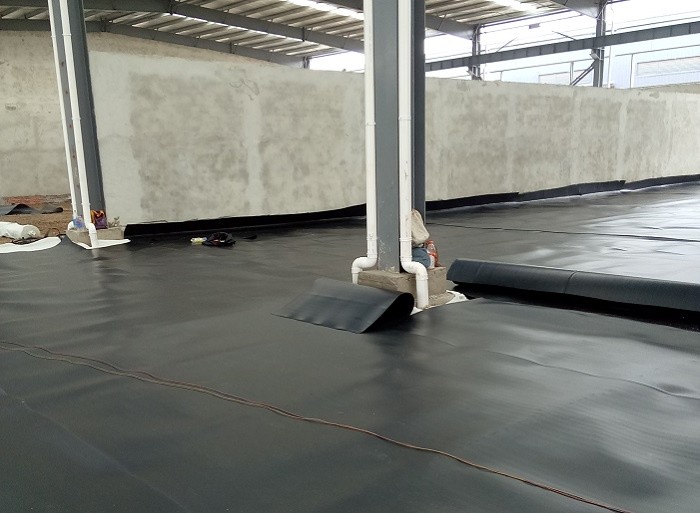

Geotechnical: vertical‑wall lining (single / double‑layer with leak‑detection), earth‑dam seepage cutoff, building vapor‑barrier against radon & hydrocarbon, tunnel/pipeline waterproof liner, expansive‑soil improvement, frost‑susceptible‑soil treatment etc.

Hydraulic: anti‑seepage facing for earth‑rockfill dams, roller‑compacted concrete dams, masonry‑concrete dams, temporary cofferdams, water‑flow diversion barriers etc.

Transportation: truck liquid‑container lining, offshore potable‑water containment, highway anti‑pollution liner against de‑icing salt, hazardous‑spill capture under highways, asphalt‑overlay waterproof underlayer etc.

Private Development: anti‑infiltration barrier for sensitive zones, temporary surcharge containment, subsurface‑compressibility adjustment, flexible anti‑loss structural formwork etc.

Installation Process

Standard workflow: earthwork preparation → panel placement → trial welding → field seaming → seam inspection & testing → defect detection & repair → anchoring & fixing.

FAQ

Q: Can you provide us free sample?

A: Yes, free samples are available for existing items.

Q: Can you recommend or sell installation equipment to us?

A: Yes, please send us your detailed requirements.

Q: Do you have warranty for your products?

A: Certainly. One‑year warranty for quality‑caused problems.

Shanghai Yingfan Engineering Material Co., Ltd. is headquartered in Shanghai, with branch offices in Chengdu and Xi’an. Our HDPE geomembrane production capacity ranks among top domestic manufacturers. We hold CE certification for HDPE geomembrane series, as well as ISO9001, ISO14001 and OHSAS18001 system certificates.

HDPE geomembrane installation requires professional workmanship. Our team holds waterproof‑engineering qualification and owns more than 12‑year on‑site installation experience to guarantee construction quality and schedule. Feel free to contact us for any questions.
