Our company, Shanghai Yingfan, is one of the leading HDPE liner suppliers in China. We provide 0.15mm to 2.0mm thick HDPE liner products. Our ordinary thickness for HDPE liner can be 10mil (0.25mm), 20mil (0.5mm), 30mil(0.75mm), 40mil(1.0mm), 60mil(1.5mm), 80mil(2.0mm). These HDPE liners can be used in landfill system, lake or lagoon, all kinds of pond system and so forth.

HDPE Liner Introduction

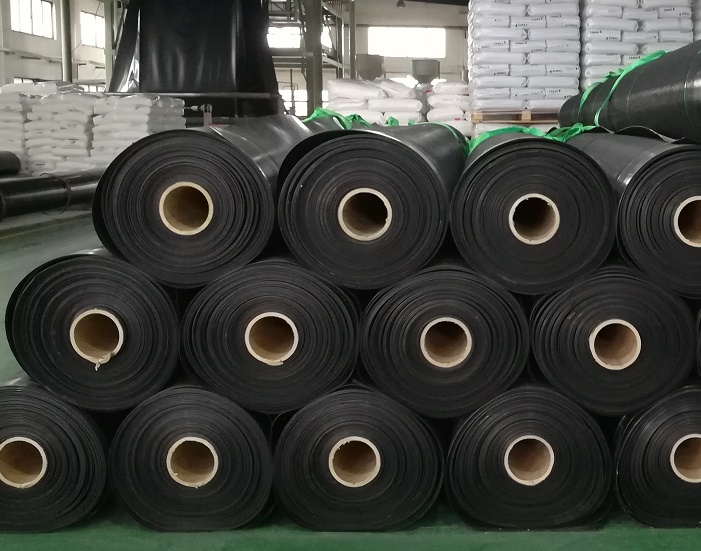

HDPE liner is manufactured with imported good‑quality resin specifically formulated for flexible liners. Its production starts from resin being melted and extruded, then blown by roots blower and spread, being cooled and finally rolled. Thanks to the addition of black carbon, it has excellent anti‑UV property.

Features and Applications

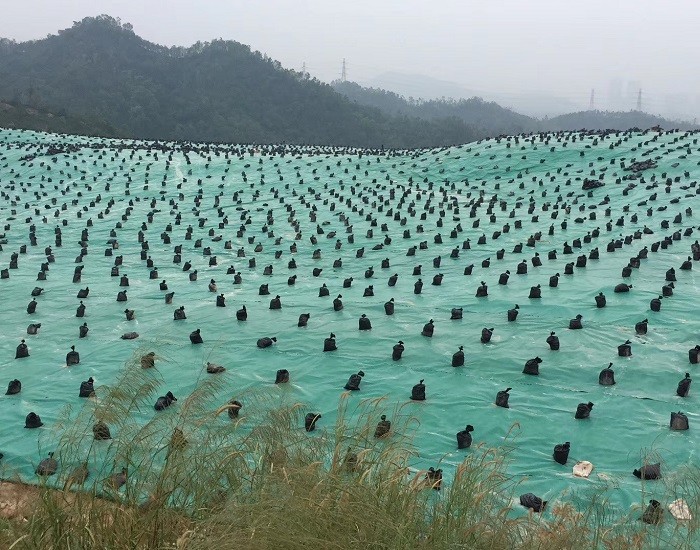

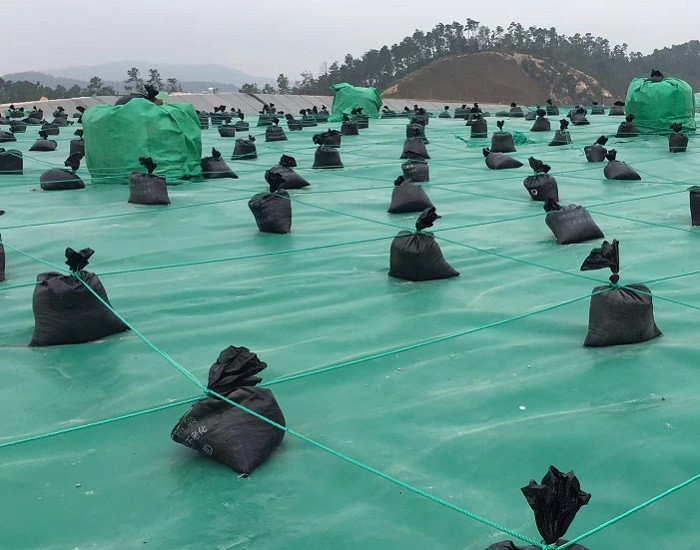

Its most important features are its low permeability (≤1.0×10‑13 g•cm/(cm²•Pa)), good chemical resistance, high physical strength and good elongation, superior UV and aging resistance and non‑toxic. So these properties contribute its wide applications in many industries including environmental municipal engineering, mining and chemical industry, construction industry, hydraulic industry, salt industry, aquaculture industry, etc. For example, landfill containment and capping, lake or lagoon waterproofing, shrimp or fish pond lining, and many other projects need our HDPE liner products to be used as a quite important containment and separation media system.

Specifications

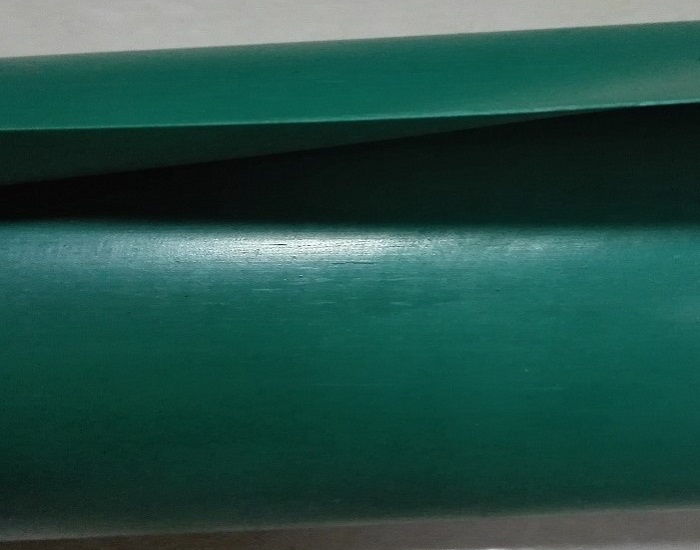

Our HDPE liner product has two types of surfaces, one is smooth and the other is textured. The textured surface of HDPE liner provides good friction efficiency in the applications, especially those on slopes.

Installation Service Supply

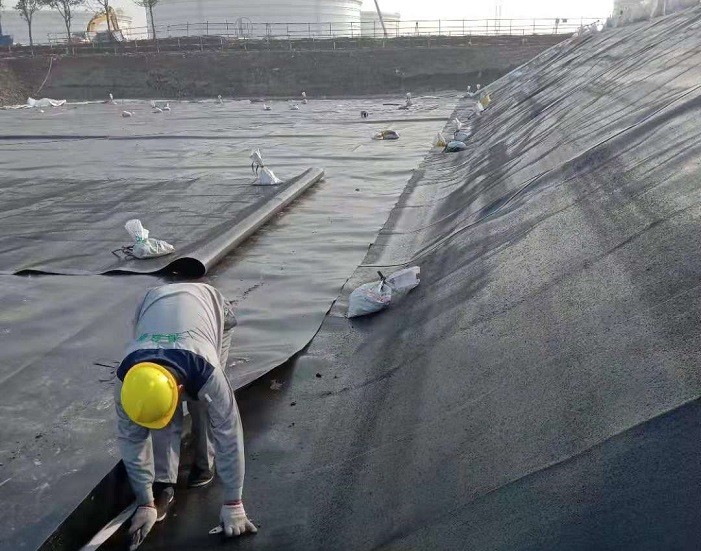

We are a registered HDPE liner installing supplier in China. Our installation team has nearly 100 people. They hold installation qualification certificates and have rich practical experience as installation technicians. Overseas installation service is available upon your inquiry. Meanwhile, welding machines, testing machines and accessories for HDPE liner installation can all be supplied from our company.

FAQ

Q: Can you provide us free HDPE liner samples?

A: Yes, we are pleased to provide any available HDPE liner samples.

Q: Is it safe in aquaculture pond lining system?

A: Yes, exactly, because there are no toxic substances in our resin and other trace‑amount additives. If required, we can provide MSDS reports.

Q: Do you have any warranty for your products?

A: Certainly. One‑year warranty for quality‑failure products. The products usually have more than 70 years life span without sunlight exposure.

Joining HDPE liners requires welding machines, testing machines and/or some accessories including HDPE rods, T‑lock for connecting HDPE liners to concrete. For more professional advice, please contact us promptly.
